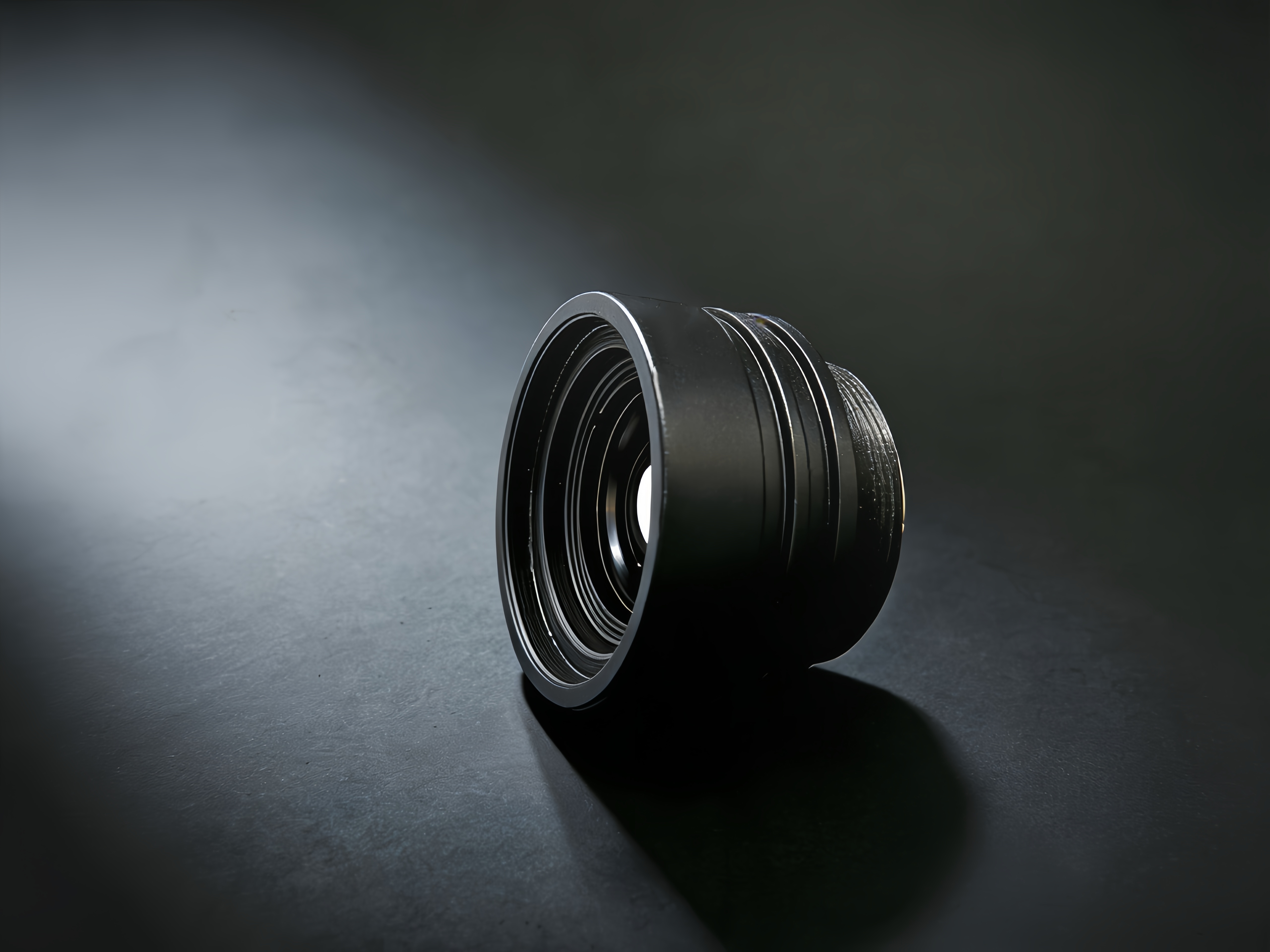

PE35-1.0-A

Items:PE35-1.0-A                          Detector sensor: 640×512
F-Number (F/#):1.0                       Focal Length:35mm
Field of View (FOV): 12.5°x10°
Focus Type: Manual                      Focus Range:∞~3m
Infrared lens(IR lenses)                 Raw material:chalcogenide glass
*It can be customized for different infrared cameras according to customer requirements.
  • PE35-1.0-A
  • PE35-1.0-A

Description

Main Specification
ItemPE35-1.0
Detector Type640×512
F-Number (F/#)1.0mm
Focal Length35mm
Field of View (FOV)12.5°x10°
Operating Wavelength Range8~12μm
Ave. Tran.≥85% (AR)
Focus TypeManual
Working Distance∞~3m
