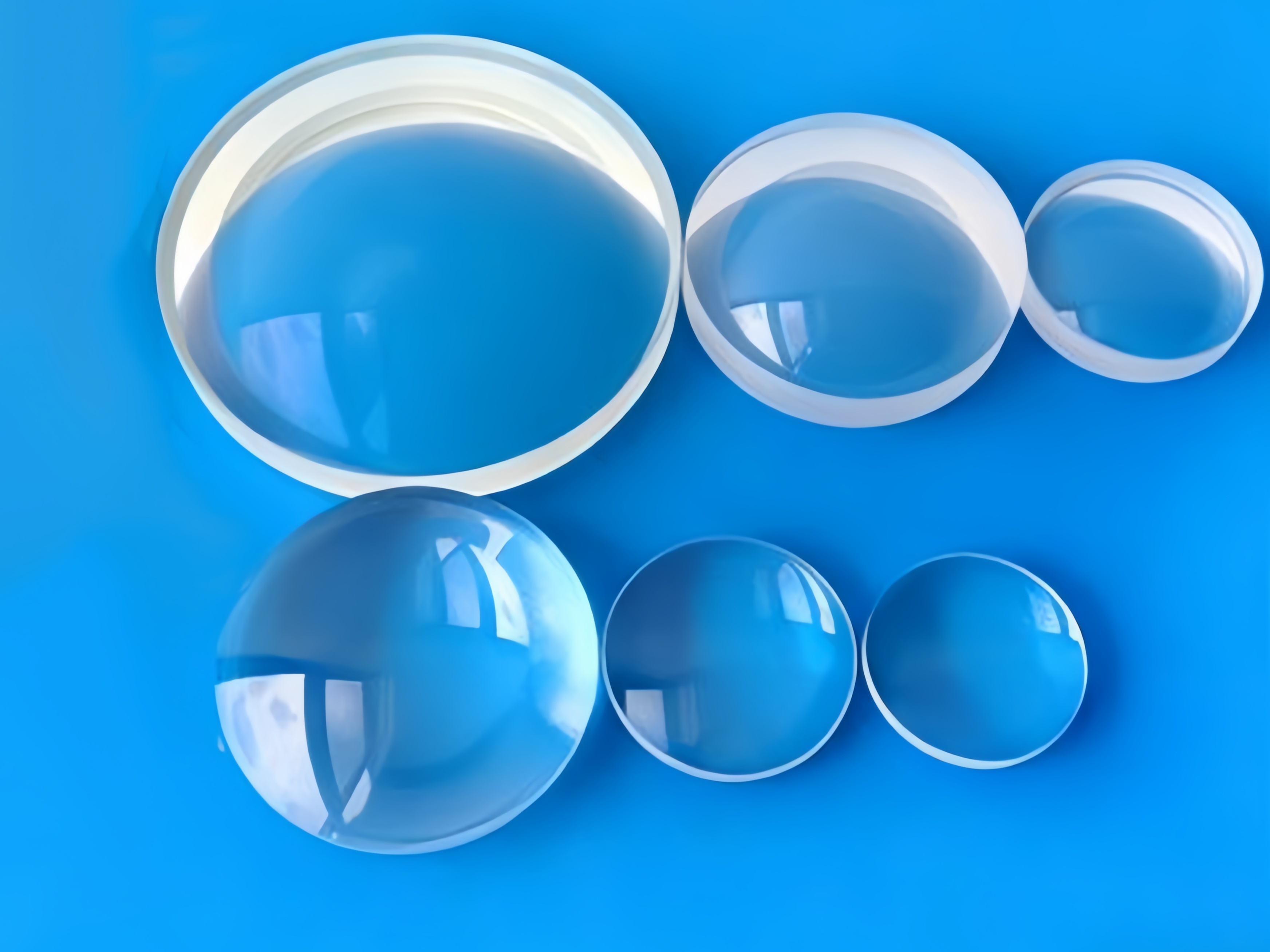

Spherical lenses

Spherical lenses can be classified by shape and function into plano-convex lenses, plano-concave lenses, biconvex lenses, biconcave lenses, and meniscus lenses. They can also be categorized by application into single lenses and cemented lenses. We offer spherical lenses in various materials, such as Si, ZnS, ZnSe, Glass (AMTIR - Amorphous Transmissive Radiation Material), Aluminum, CaF₂, MgF₂, GaAs. We maintain a large inventory of standard lenses available for immediate delivery, and can also customize various optical lenses according to your application requirements

  • Spherical Lens - Plano-Convex and Biconvex Optical Lenses in Multiple Materials | Peoptix
  • Description

  • Technical Indicators

Technical Indicators
Specifications According to customer's specific requirements
Diameter Tolerance ±0.025mm ~ ±0.1mm
Central Thickness Tolerance ≤±0.03mm ~ ±0.2mm
Surface Figure Accuracy λ/10 ~ λ/2(<0.5μm)
Surface Quality 80/60,60/40,40/20,20/10
Centering Error ≤1′
Specifications (mm)According to customer's specific requirements
Spherical Radius RangeR3mm ~ R∞
Diameter Tolerance±0.025mm ~ ±0.1mm
Central Thickness Tolerance≤±0.03mm ~ ±0.2mm
Surface Figure Accuracyλ/10 ~ λ/2(<0.5μm)
Surface Quality80/60,60/40,40/20,20/10
Centering Error≤1′
