Si C+AR Coating(3.7–4.8 μm)

C+AR Coating (Enhanced Anti-Reflective Coating) is a next-generation multi-layered technology integrating advanced AR performance with superior protection. Unlike traditional AR coatings that only reduce light reflection, our C+AR Coating adds a reinforced layer to resist scratches, corrosion, extreme temperatures and wear – while maintaining exceptional optical clarity. This makes it ideal for products requiring uncompromising visibility and durability, solving the “performance vs. protection” challenge.
  • Si C+AR Coating(3.7–4.8 μm)

Description

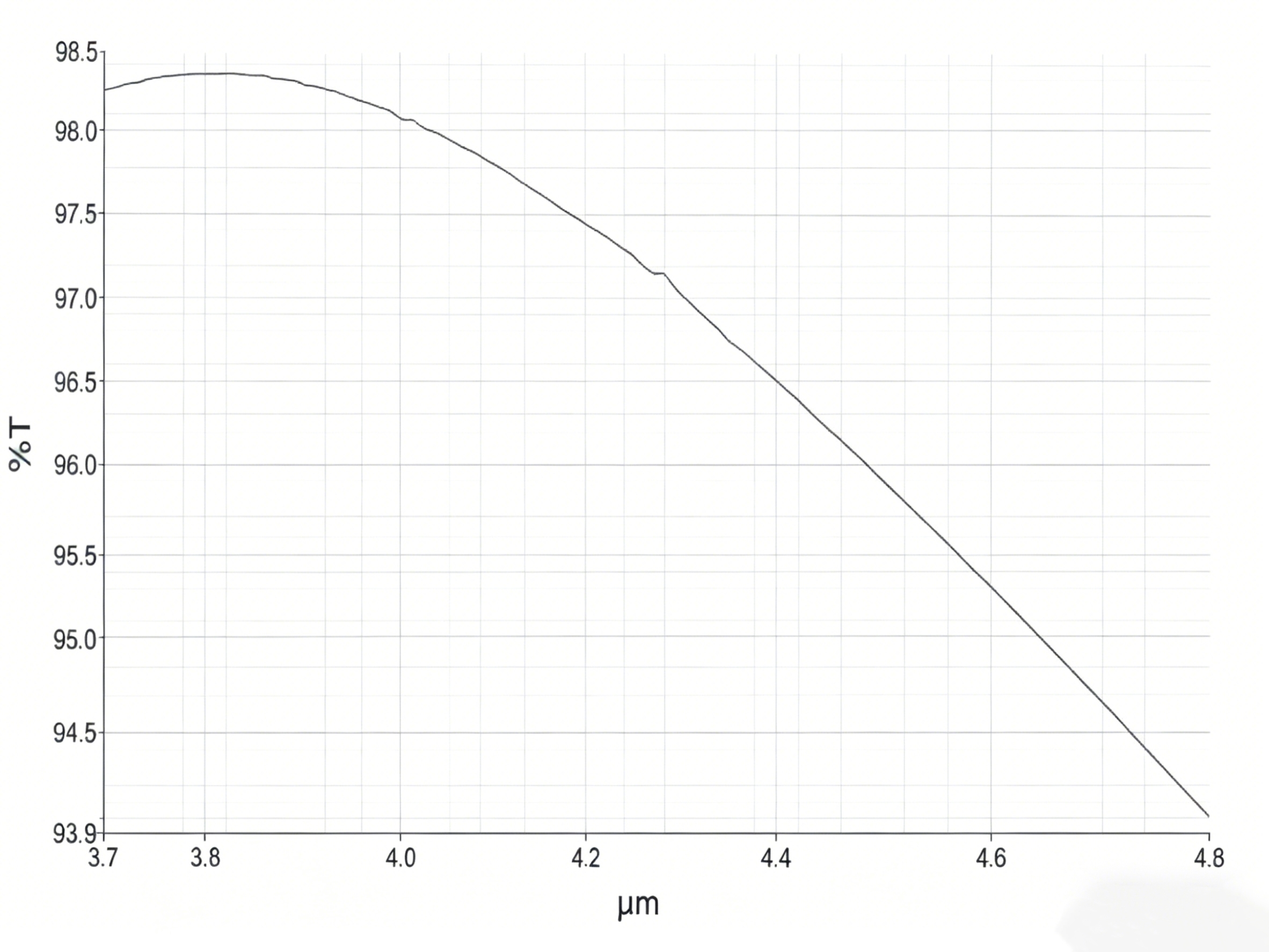

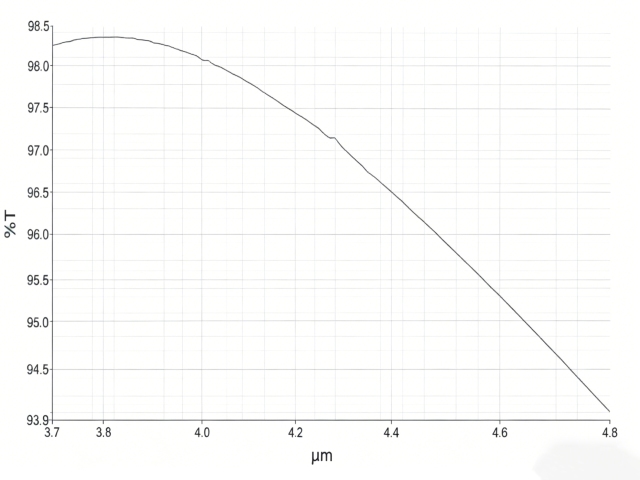

This is the transmittance curve of silicon substrate with C+A coating, tested in 3.7–4.8 μm mid-infrared range.
  1. The transmittance reaches the highest about 98.2%–98.4% at 3.7–3.8 μm, with good optical performance.
  2. From 3.8 μm to 4.8 μm, the transmittance drops steadily. It falls to about 93.9% at 4.8 μm.
  3. The average transmittance of the full waveband is 96.9%.
