KTP (Potassium Titanyl Phosphate, KTiOPO₄) is a high-performance nonlinear optical crystal widely used for laser frequency conversion, electro-optic modulation, and optical parametric oscillation. It stands out for high nonlinear coefficients, broad transparency, high damage threshold, stable physical/chemical properties, and wide phase-matching ranges, making it the preferred material for 1064 nm→532 nm laser frequency doubling and mid-infrared photonic systems.

Description

Specifications	According to customer's specific requirements
Chemical Formula	KTiOPO₄
Crystal Structure	Orthorhombic, point group mm2, space group Pna2₁
Diameter Tolerance	+0.0/-0.1mm
Central Thickness Tolerance	±0.1mm
PV	λ/8
Parallelism	<30''
Surface Quality	60/40, 40/20

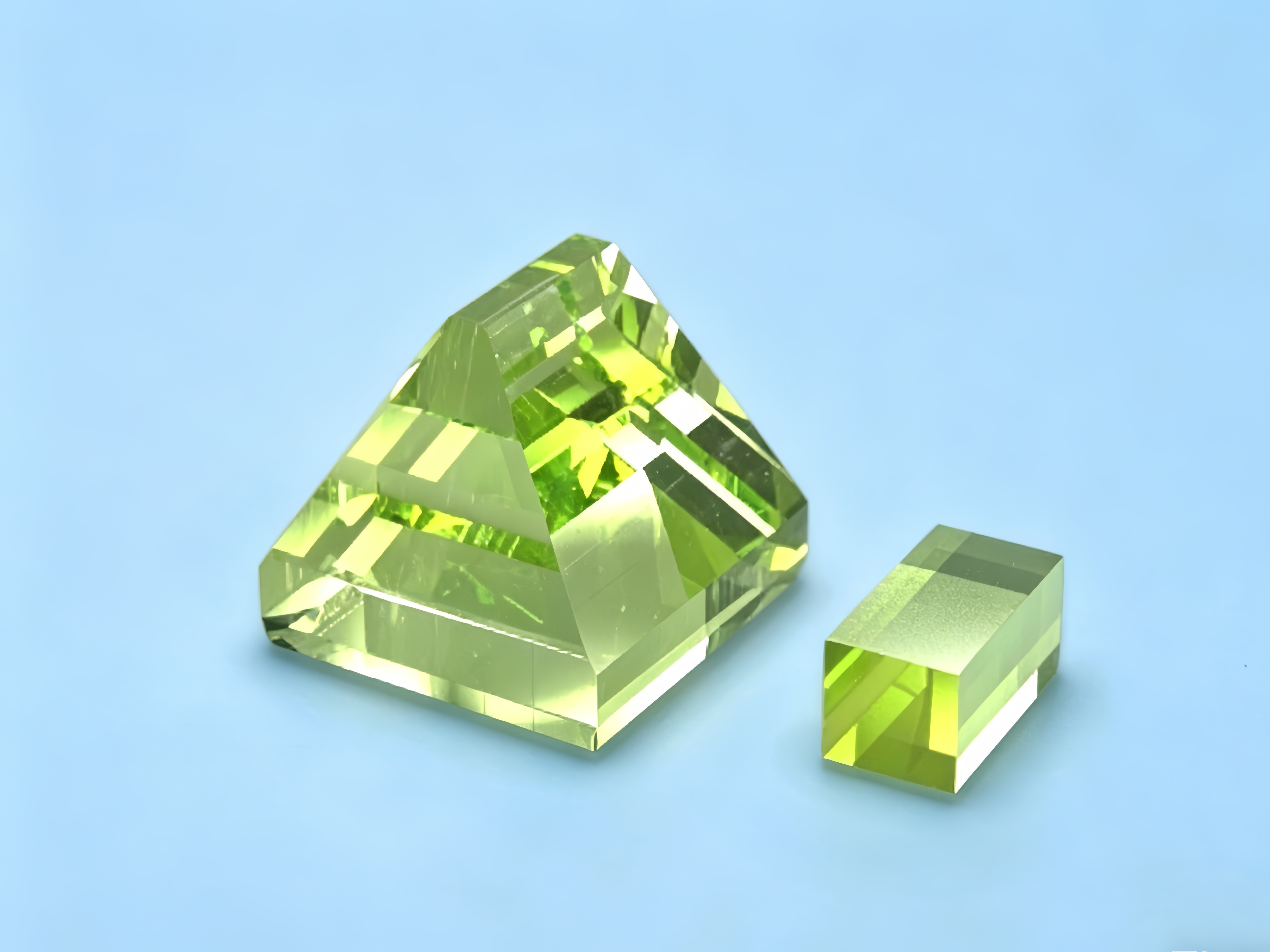

KTP Crystal
