• ZnS Optical Lenses

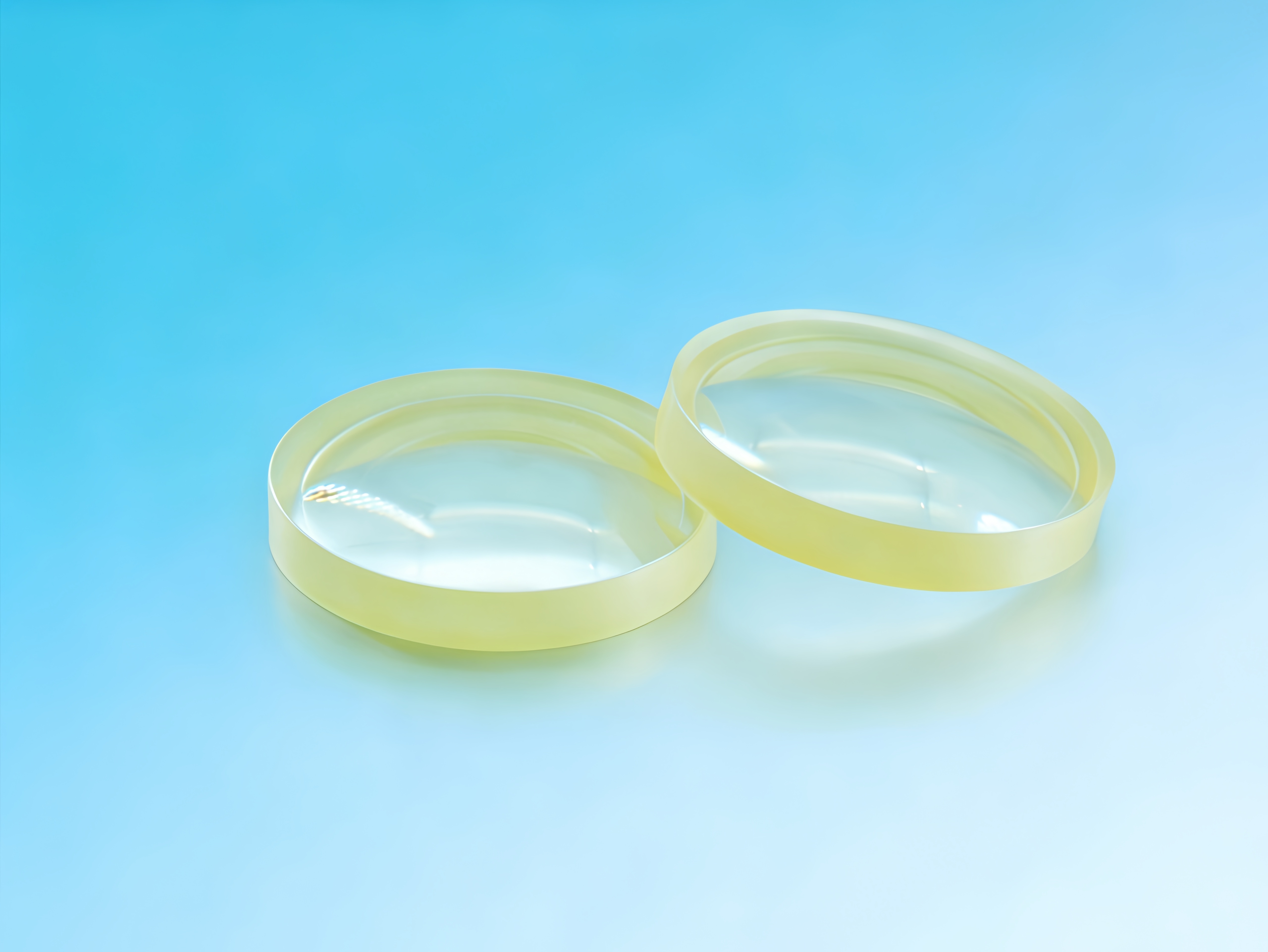

ZnS Optical Lenses

ZnS (Zinc Sulfide) lenses are high-precision infrared optical components with exceptional transmittance in 8-12μm (LWIR) and 3-5μm (MWIR) bands, ideal for thermal imaging, military, aerospace, and laser systems.
  • ZnS Optical Lenses

Description

Specifications According to customer's specific requirements
Material High-purity CVD ZnS / Sintered ZnS
Diameter Tolerance  ±0.01-0.2mm
Central Thickness Tolerance ±0.1mm
PV λ/4
Parallelism <3'
Surface Quality 60/40
Coating Optional (MgF₂, Yttrium Fluoride)
